This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.
Specification
Sizes: 4" (DN100)
Connections: Special Flange
Materials: Inlet Body: Stainless Steel
Disk: Soft Seated FPM / PTFE sheathed
Joints & Seals:
Medium: Gases
Set Pressure: 7 to 7.5 Barg and 13.3 to 13.8 Barg
Temperature: -20 to 150 degC
Design: TUV

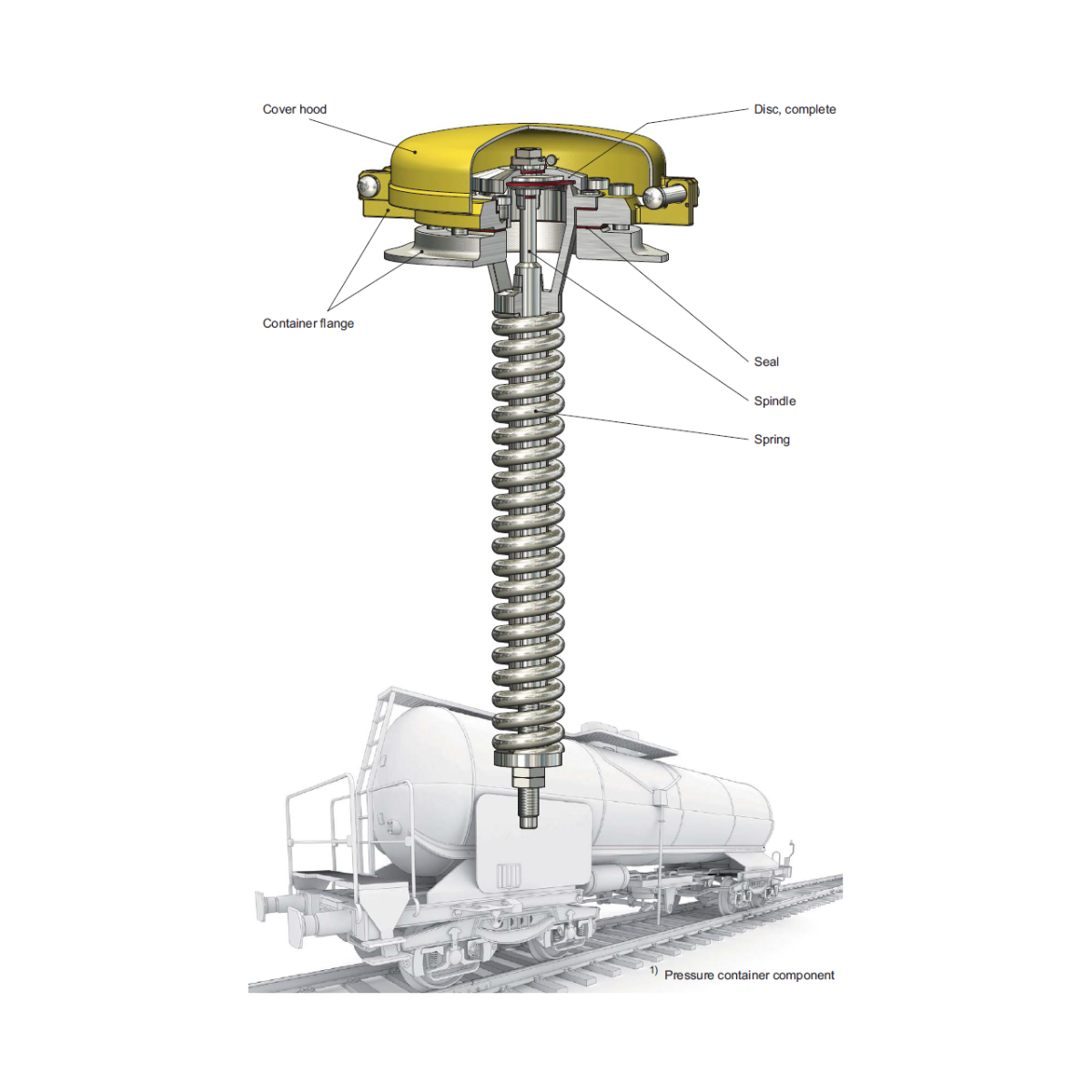

Notes: To be used on pressure vessels. The spring part goes into the tank leaving only the top of the dome visible.
