This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.
Size: 1/2", 3/4", 1", 1.1/4", 1.1/2, 2", 2.1/2", 3", 4"
Connections: Flanged DIN or ANSI

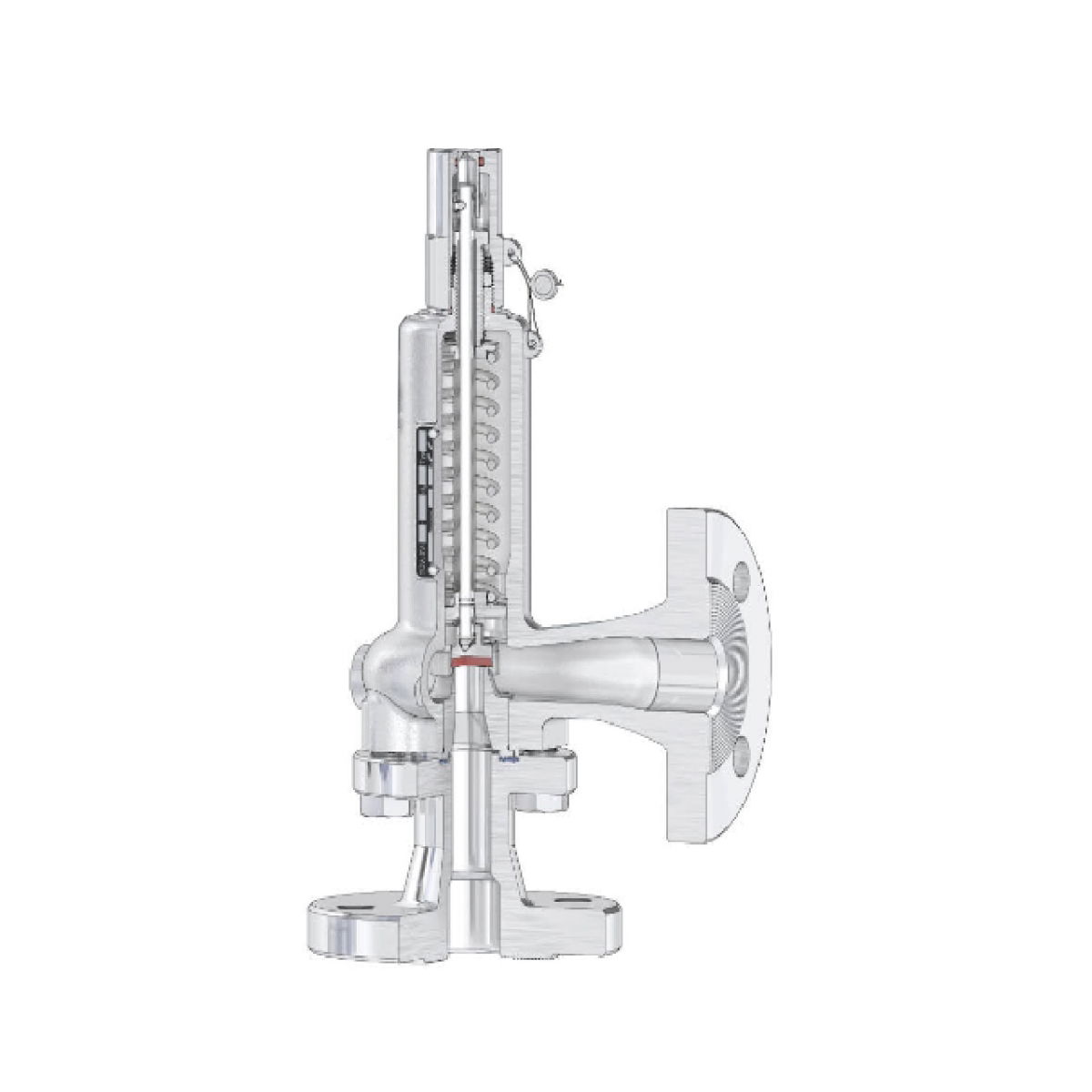

Head Type: C (Gas tight cap)
Materials: Stainless Steel (30.2 & 30.7)
Disk: Metal, Viton or Nylon (depending on pressure)
Joints & Seals: NBR, FPM, EPDM (depending upon model)
Medium: Steam, Gases and Liquids
Set Pressure Range: 0.05 to 40 Barg (over several springs)
Temperature: (30.1) -10 to 280 degC, (30.2) -60 to +280degC, (30.7) -200 to +280degC
Design: TUV
Notes: Temperature range is for valves with a Metal disk. For the 30.1 and 30.2 the temperature range changes depending upon the body size.
