This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

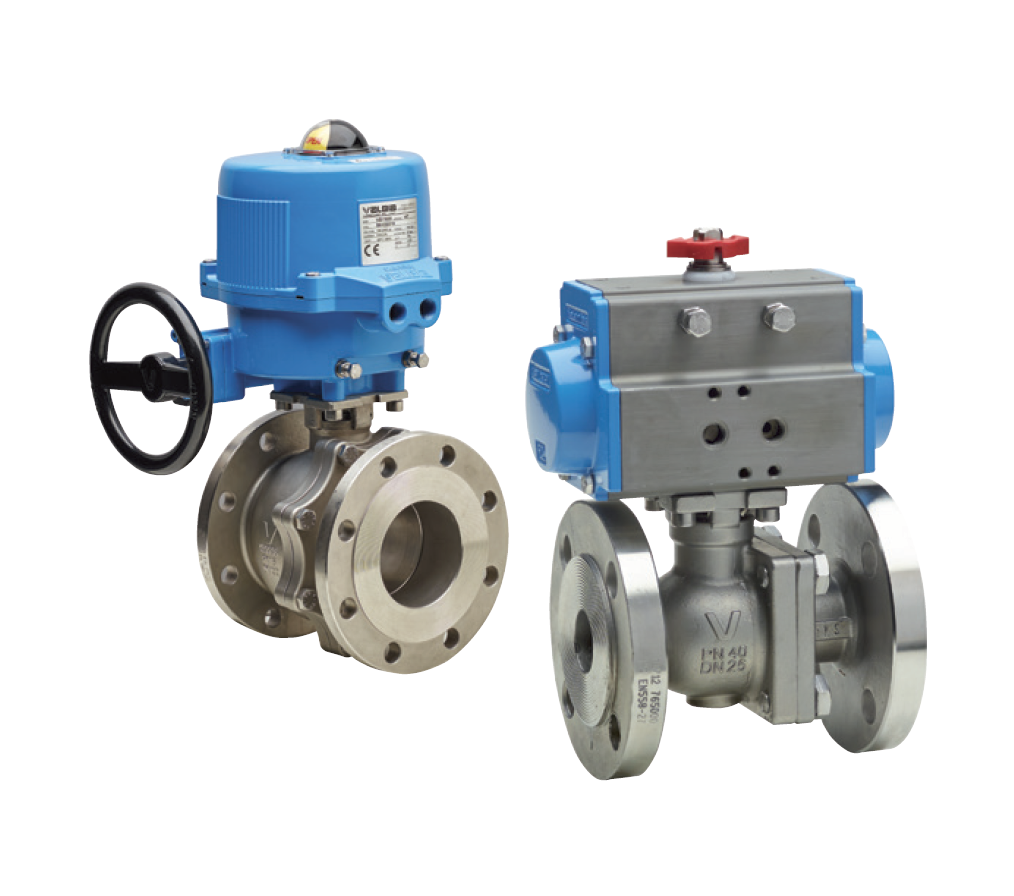

Valpres 76 series ISO Direct Mount split body 2 piece full bore ball valve. With a Stainless Steel ball and stem, P.T.F.E. seats and P.T.F.E. / Graphoil / FKM seals. Antistatic and Firesafe to BS6755 Part 2, API spec. 6FA and ISO 10497. ATEX II 2GD T3 approved. End connections flanged and drilled PN16 / PN40 / ANSI 150.
Valbia 85 series electric actuator. With a Techno-polymer housing. IP67 protection. With manual override and visual position indication. 2 x limit switches fitted for remote open and closed position indication. With an electronic torque limiter. With an internal anti-condensation heater. With PG11 electrical connections.
Valbia 82 series pneumatic actuator. Sized based on a minimum pilot air supply pressure of 5.5 Bar g. Rack and pinion design, Hard Anodised Aluminium body, Blue coated end caps, visual position indication. With bi-directional open/close travel stops. Suitable for a maximum air supply pressure of 8 Bar g. ATEX II 2GD T6 approved.
All assembled (Direct Mount) and function tested.
Specification
Size range: 1” to 4”
Body Materials: Carbon Steel or Stainless Steel
End connections: PN16 (all sizes) PN40 (1” to 2”) ANSI 150 (all sizes).
Valve Options: The valves are available with a V ball for flow control. Different seat materials are available to suit many different applications.
Actuator options: Double Acting, Spring Return (Fail Close or Fail Open), Stainless Steel body and Painted options are also available.
