This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

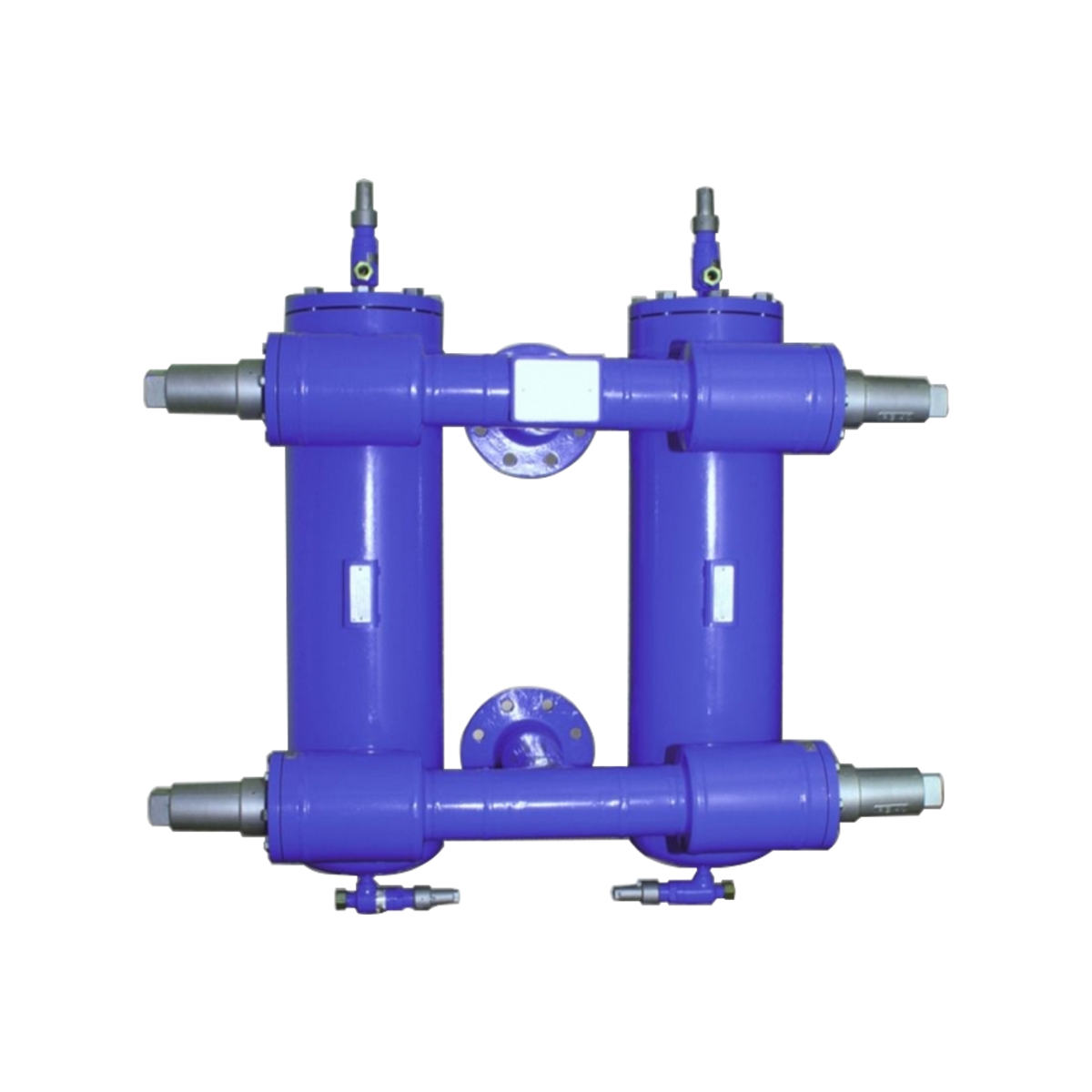

Refrigeration double oil filters (also called duplex oil filters) are specialized filtration units used in industrial refrigeration systems—especially those with ammonia (NH₃) or CO₂—to continuously remove impurities from the compressor oil while allowing uninterrupted operation during filter maintenance or replacement.
A double oil filter has two parallel filter housings connected by a changeover valve or three-way valve. This setup allows the system to switch between filters without shutting down the refrigeration system.
Specification
Sizes: 1" to 3" (depending upon the type)
Connections: Flanged
Materials: Steel
Medium: Glycol-based cold brine refrigerant EN 378 p. 1, e.g. NH3, R134a, R290 (propane), R507, blends with refrigerator oil, neutral, gas and liquid media, glycol-based cold brine
Pressure Rating: PS 25, PS 40
Temperature: -20 to +120 degC Max
Design:
Notes: Paper filters with a a filter-fineness of 15 μm
