In industrial systems, valves are essential components used to control the flow, pressure, direction, and isolation of liquids, gases, and slurries. There are many types of industrial valves, each designed for specific applications and functions.

Main Types of Industrial Valves

1. Gate Valve

• Function: On/off isolation
• Design: Rising or non-rising stem with a gate/disc
• Pros: Low pressure drop, good sealing
• Cons: Slow operation, not ideal for throttling
• Use: Water, oil, gas pipelines

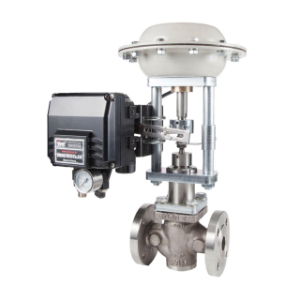

2. Globe Valve

• Function: Flow regulation and throttling
• Design: Disc moves perpendicular to seat
• Pros: Good flow control
• Cons: Higher pressure drop
• Use: Steam systems, cooling water, chemical feed

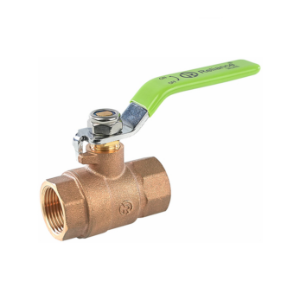

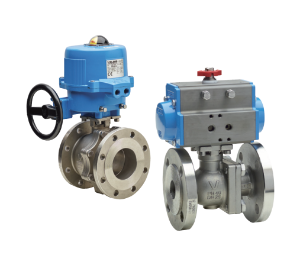

3. Ball Valve

• Function: Quick shut-off
• Design: Rotating ball with bore
• Pros: Fast operation, tight sealing
• Cons: Not ideal for throttling
• Use: Gas, air, liquids, high-pressure lines

4. Butterfly Valve

• Function: Flow control and isolation
• Design: Rotating disc inside pipe
• Pros: Compact, lightweight, fast operation
• Cons: Less effective for high pressure
• Use: Water treatment, HVAC, chemical services

5. Check Valve (Non-Return Valve)

• Function: Prevents backflow
• Design: Swing, lift, or spring-loaded disc
• Pros: Automatic operation
• Cons: Can be noisy or wear out over time
• Use: Pumps, pipelines, fuel systems

6. Pressure Relief/Safety Valve

• Function: Overpressure protection
• Design: Spring- or pilot-operated
• Pros: Essential for system safety
• Cons: Set pressure must be carefully chosen
• Use: Boilers, pressure vessels, air/gas systems

7. Diaphragm Valve

• Function: Flow control, especially for corrosive fluids
• Design: Flexible diaphragm against a seat
• Pros: Leak-proof, good for slurries
• Cons: Limited pressure/temperature range
• Use: Chemical and pharmaceutical industries

8. Pinch Valve

• Function: Control flow by pinching flexible tube
• Design: Sleeve or tube pinched by mechanical means
• Pros: Full bore, great for abrasive slurries
• Cons: Limited pressure range
• Use: Mining, wastewater, pulp and paper

9. Plug Valve

• Function: Shut-off and flow control
• Design: Tapered or cylindrical plug inside body
• Pros: Simple design, good sealing
• Cons: Higher torque needed
• Use: Oil, gas, and chemical processing

10. Needle Valve

• Function: Precise flow control
• Design: Tapered needle moves into seat
• Pros: Very fine control
• Cons: Not for high flow rates
• Use: Instrumentation and metering systems

Choosing the Right Valve

Key selection factors:

• Fluid type (liquid, gas, slurry)
• Pressure & temperature
• Flow rate & control requirements
• Material compatibility
• Maintenance & life expectancy
