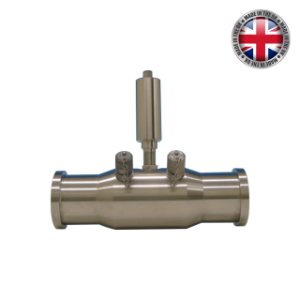

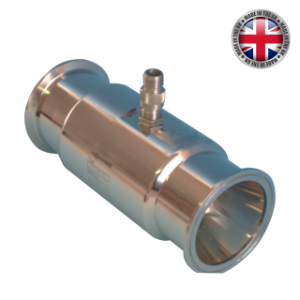

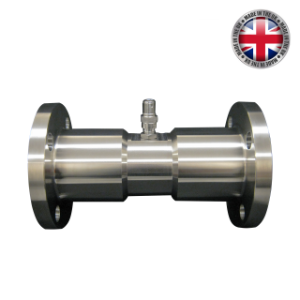

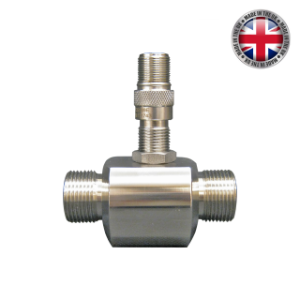

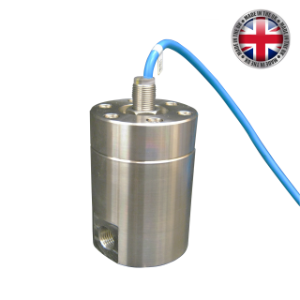

Turbine flow meters are precision instruments used to measure the flow rate of liquids or gases by detecting the rotational speed of a turbine (rotor) inside the flow stream. The faster the flow, the faster the turbine spins, and this rotation is converted into a flow rate signal.
How It Works:
- Fluid enters the flow meter and passes over a multi-blade turbine rotor.
- The flowing medium causes the rotor to spin at a speed proportional to the velocity of the fluid.

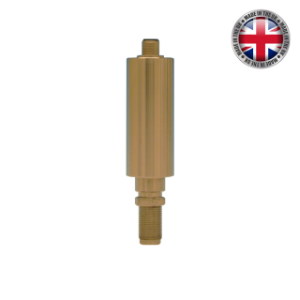

- A pickup sensor (usually magnetic or optical) detects each turbine blade as it passes.
- The number of pulses per second = flow rate.

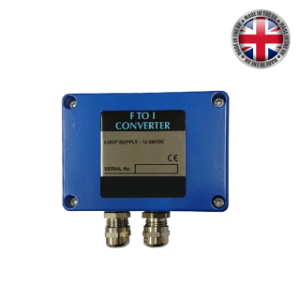

- Electronics convert this signal into volume or flow rate units (e.g., L/min, GPM, m³/h).
Key Characteristics
| Feature | Detail |
|---|
| Accuracy | ±0.5% to ±1.5% of reading (high precision possible) |
| Repeatability | Excellent (often ±0.1%) |
| Output | Frequency, pulse, or analog (4–20 mA) |
| Materials | Stainless steel, bronze, plastic, or aluminum |
| Sizes | Typically from 1/4" to 12"+ (DN6 to DN300+) |
| Orientation | Must be installed in a straight pipe run (to avoid turbulence) |
Applications:
- Fuel measurement (diesel, jet fuel)
- Water flow monitoring
- Hydraulic oil and lubricant systems
- Pharmaceutical and chemical processing
- HVAC and energy management
- Custody transfer (with calibration)
Pros & Cons:
| Advantages | Limitations |
|---|
| High accuracy and repeatability | Not suitable for very dirty or viscous fluids |
| Wide flow range | Requires flow conditioning (straight pipe) |
| Fast response time | Moving parts may wear over time |
| Compatible with digital systems | Sensitive to fluid viscosity and density |
Maintenance Tips:
- Keep the flow clean (install upstream filters if needed)
- Periodically verify calibration
- Avoid operation outside rated flow or pressure ranges
- Monitor for bearing wear over time
