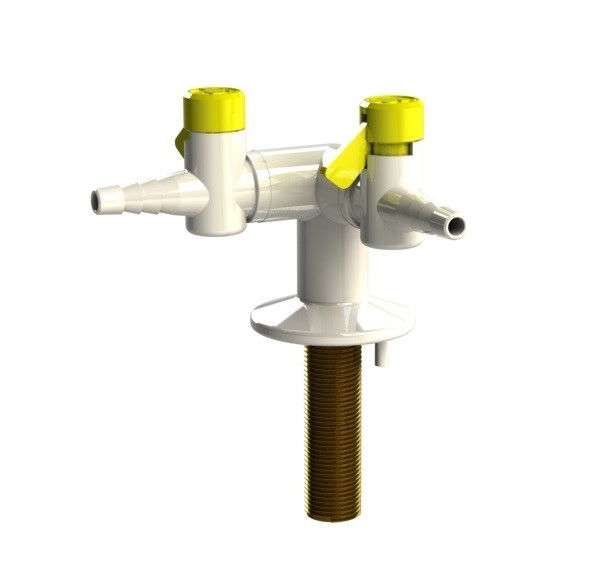

Two Way Bench Mounted Drop Lever Gas Tap.
The 900033 Two Way Bench Mounted Gas Tap features drop levers in
yellow, allowing you to quickly identify if any taps have been left in
the on position. These taps are found in a wide range of lab settings,
but are particularly popular in school laboratories thanks to their
advanced safety features.
The shank is a male 3/8″ BSP
The anti-rotation pin secures the tap from rotating on the surface
underneath. An installation template is provided with each tap for a
precise fit. These taps are also British Gas-approved and come with a
5-year warranty.
Specification
Part No: 900033NG-WA
Description: Two-way high visibility droplever gas tap fixed serrated nozzle. Integral anti-rotation pin.
Applications: Standard laboratory gas tap for Bunsen burner type applications. Suitable for both natural and LPG gas applications.
Construction: All
brass body, Rilsan plastic coated, white (RAL 9016). Identification

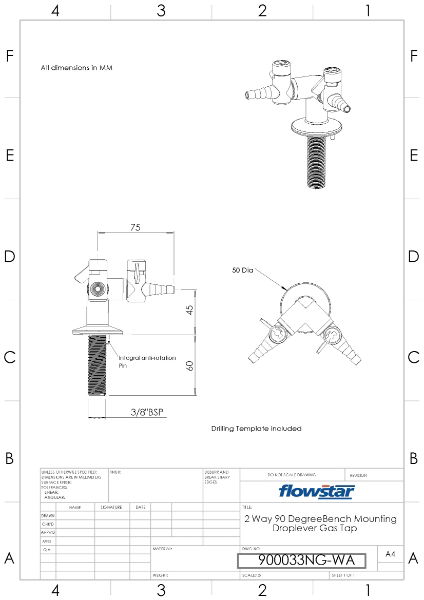

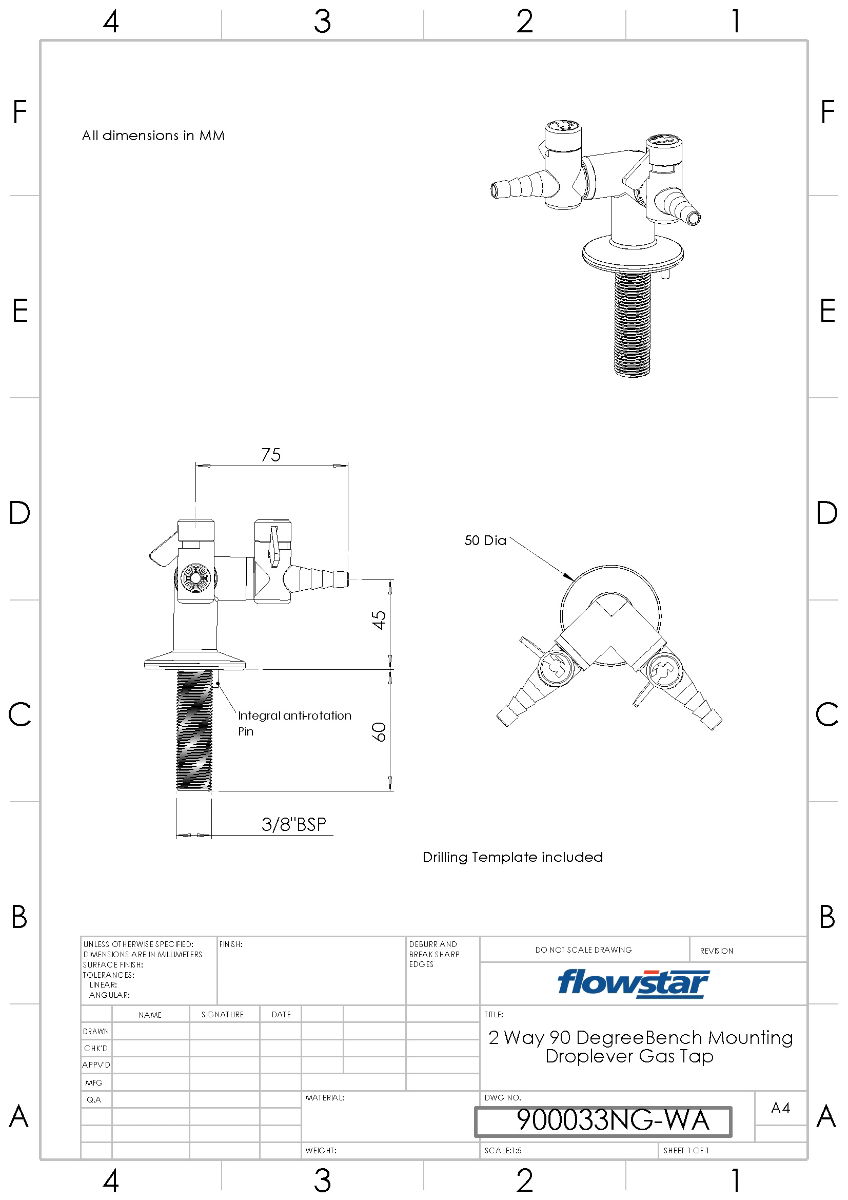

coding to DIN13792 Connection and mounting: 3/8” BSP male flat ended
shank x 60mm long with back nut. Standard anti-rotation base with
location pin. Two mounting holes 17mm and 5mm diameter are required
through the work surface, template enclosed.
Service: Natural or LPG gases
Pressure and Flow: Maximum work pressure 20 – 25 Mbar. Flow Rate @ 20Mbar = 1 Cubic metre/hour per nozzle.
Please note: The appliance should be used to size pipe work and not the gas valve. British Gas/BSI certified. These items should only be installed by a person competent to do so.
