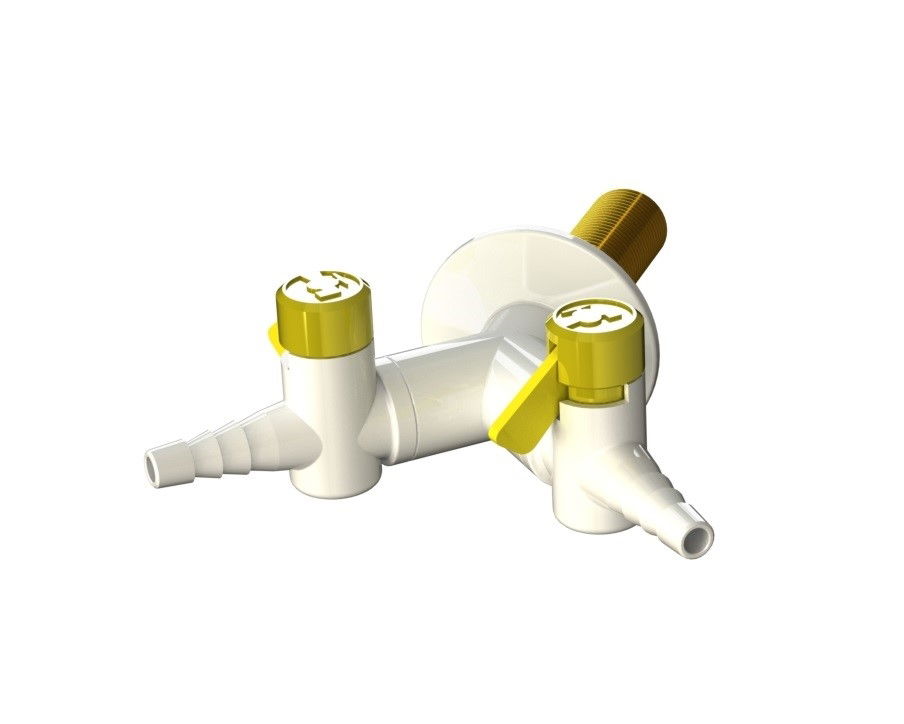

Two Way Wall Mounted Drop Lever Gas Tap.
The 900036 2 way wall mounted gas tap features drop lever handles in
yellow to quickly identify if any have been left in the on position – a
great safety feature. They also have the option to insert a grub screw
or ‘barrels’ into the nozzles so you can easily wind them out with an
Allen key to remove any debris placed in the nozzle, the barrels can be
cleaned and reinserted, increasing the longevity of the tap!
These taps can be found in thousands of labs and they are incredibly
popular within the education sector. It is constructed from solid brass
and has a male 3/8″ BSP thread.
The gas tap features an integral ‘anti rotation pin’ which prevents
the tap being twisted from the desk. An installation template comes with
each tap to ensure a perfect fit. The gas tap holds the prestigious
British Gas approval.
Specification
Part No: 900036NG-WA
Description: Two-way wall mounting high visibility drop lever gas tap fixed serrated nozzle,
Integral anti-rotation pin.
Applications: Standard laboratory gas tap for Bunsen burner type applications. Suitable for both natural and LPG gas applications.
Construction: All brass body, Rilsan plastic coated, white (RAL 9016). Identification coding to DIN13792

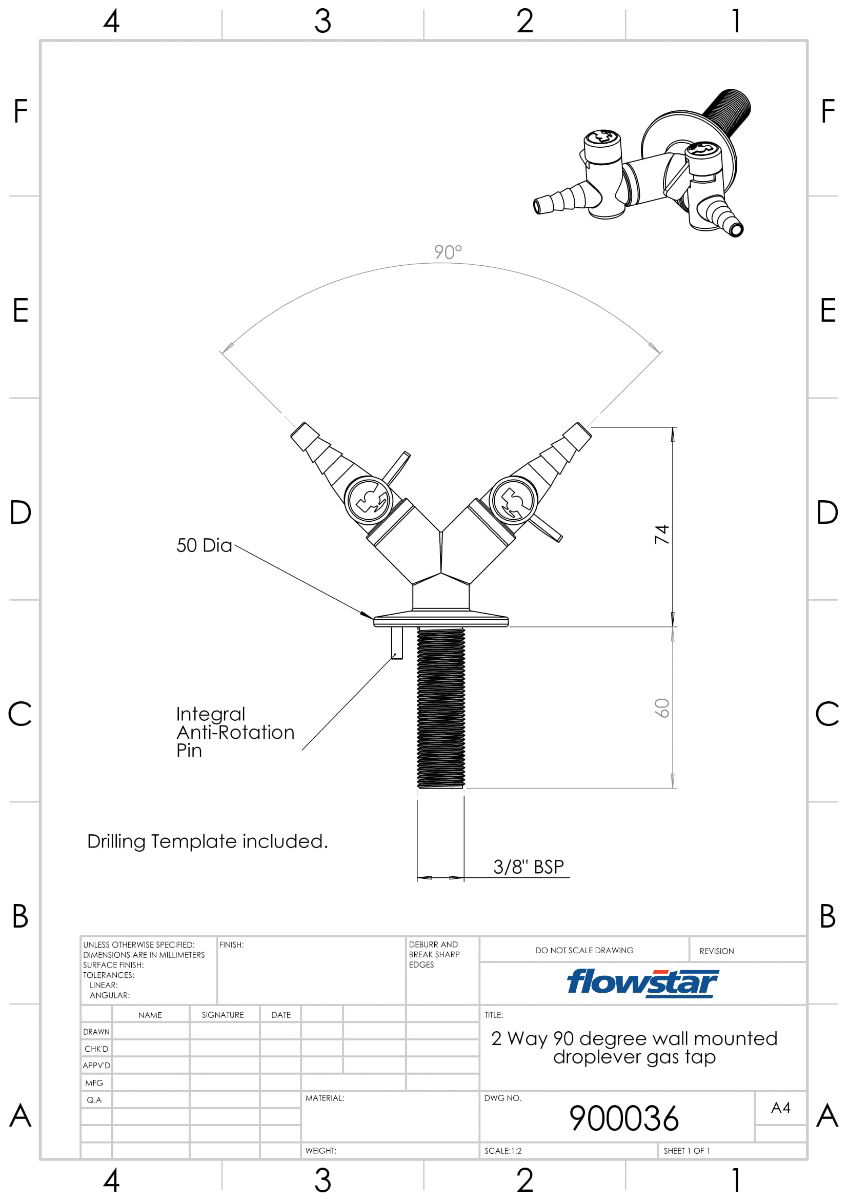

Connection and mounting:
3/8” BSP male flat ended shank x 60mm long with back nut. Standard
anti-rotation base with location pin. Two mounting holes 17mm and mm
diameter are required through the work surface, template enclosed.
Service: Natural or LPG gases
Pressure and Flow: Maximum work pressure 20 – 25 Mbar. Flow Rate @ 20Mbar = 1 Cubic metre/hour per nozzle.
Please note: The appliance should be used to size pipe work and not the gas valve. British Gas/BSI Certified. These items should only be installed by a person competent to do so.
