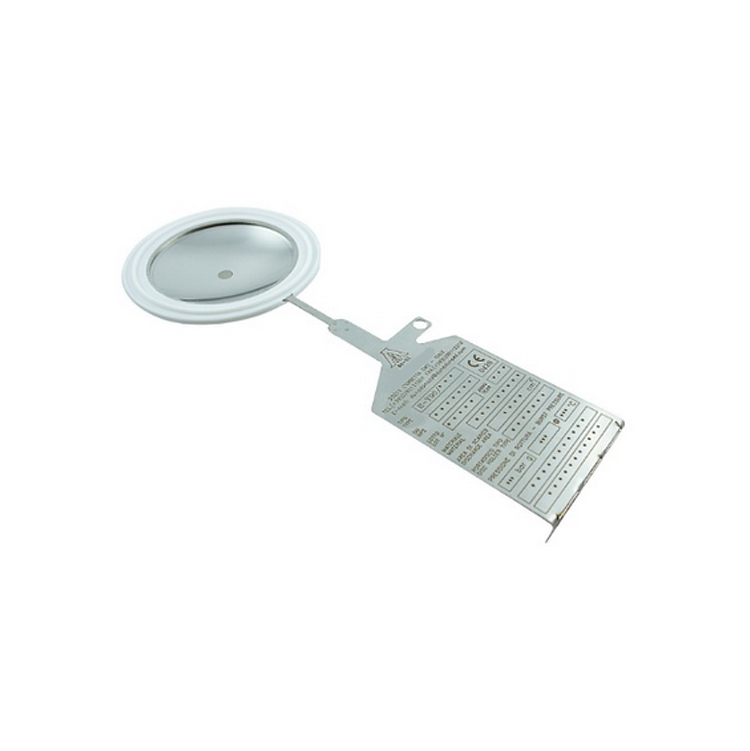

The FSY90S Sanitary Rupture Discs are a compression-loaded disc or reverse-acting disc, scored around the circumference. This disc has been designed to meet the high quality standards required by 3-A SSI, whose aim is to ensure public health through hygiene equipment. PTFE gaskets, which are certified in compliance with FDA and USP class VI, 3-A, and Eu 10/2011 regulations, facilitate the installation in Clamp fittings (sanitary, Tri-Clamp, Tank Connection). The FSY90S model is particularly suitable for the Pharmaceutical, Food, and Biotechnology industries. This disc is entirely made of AISI 316L stainless steel (or other alloys upon request of the client). It’s smooth surface on the process side makes it particularly suitable for C.I.P. and S.I.P. treatments to maintain aseptic conditions. The FSY90S rupture disc is used with gas or liquids only (with the presence of a gas cushion), also under cycling and pulsating conditions, while safety is never affected. Upon reversal, the disc opens completely in a few milliseconds along the score line, thus preventing fragmentation from forming.
Specification
Sizes: 1" (DN25) to 8" (DN200)
Materials: Stainless steel, Alloy 201, Alloy 400, Alloy 600, Alloy 625, Alloy C276, Titanium
Rupture Pressure: 0,3 bar g - 10 bar g (depending on material and diameter)
Krl:
Tolerance: from +/- 5 % to +/- 20%
Temperature: Gaskets in PTFE (max 265°C)
Operating Margin: 90% - Able to reach 95% depending on the conditions of service
Fragmentation: No (will not break up on bursting)
Use under valve: Yes
Corrosion Resistance: Very good
Linings: Yes
Container: FSHTC
Rupture Sensor: Electrical
PED Certification (CE Stamp): Available
ATEX EX II 2 GD Certification: Available
3-A Compliance: Available
