This is a non-stocked item, please call +44 (0)1482 601030 or email sales@flowstar.co.uk for price and availability.

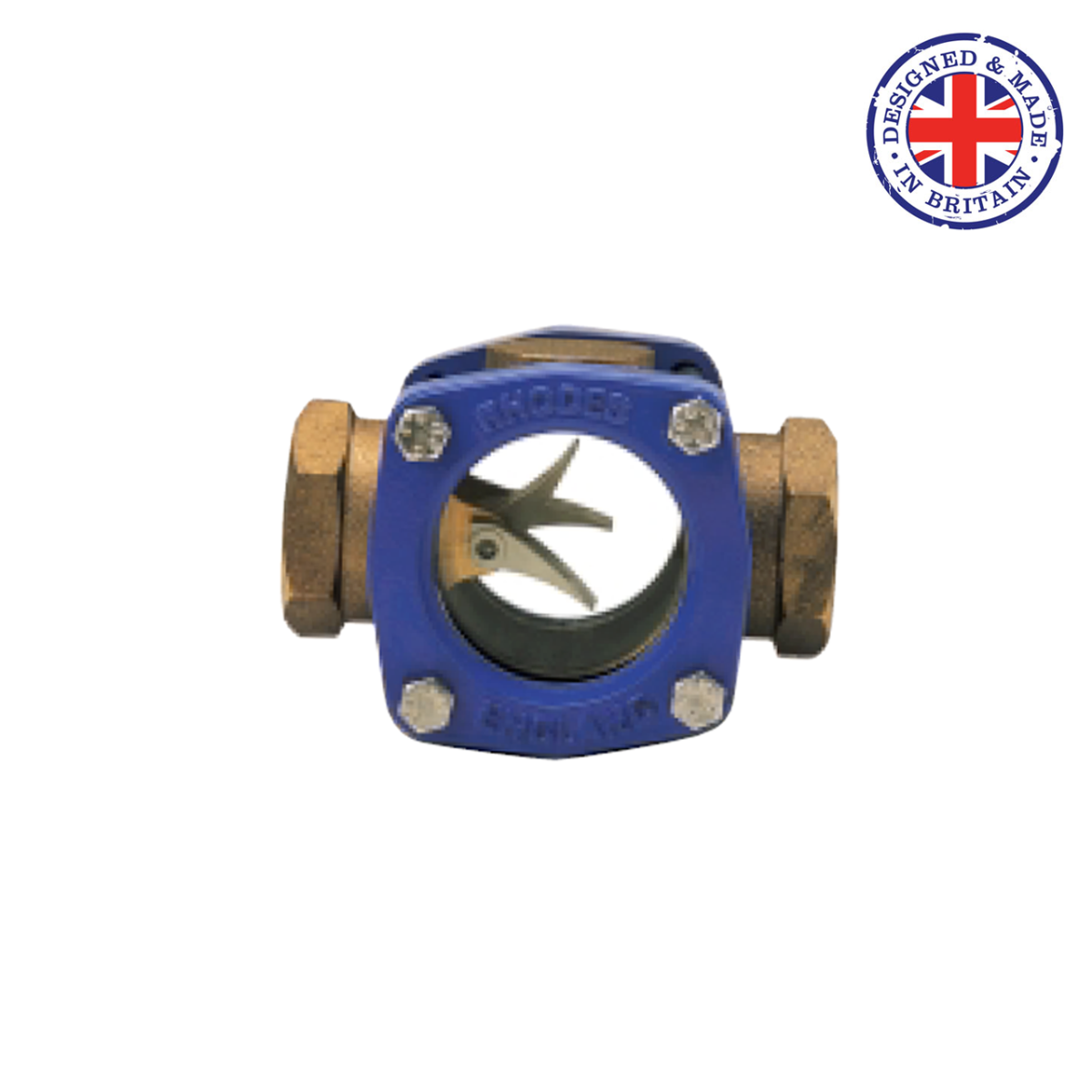

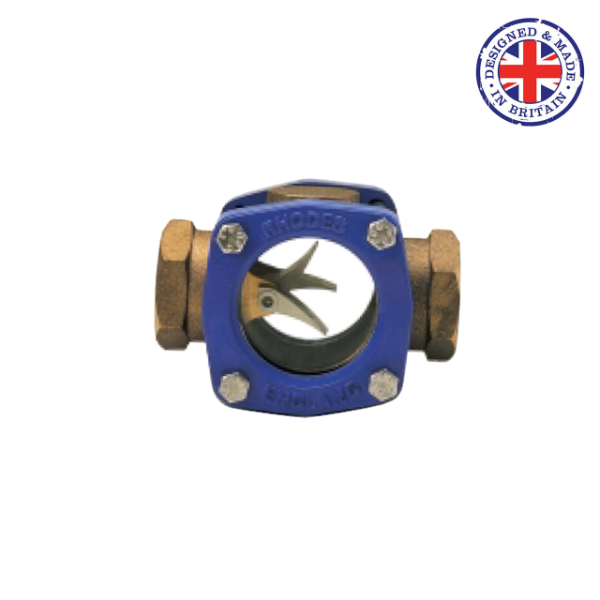

The models 901/902 general purpose indicators used by equipment manufacturers and process plant users, employs Rhodes’ unique patented ‘flow fingers’ to provide flow indication.
The flow fingers provide positive indication of clear and murky liquids even under slow, steady flow conditions. The 902 version is fitted with a flow switch. Rhodes Sight Glasses are fully UK manufactured with castings from the UK, unlike many of the competitors using components from the far east.
Sizes: 1/2" to 2"
Connections: BSPT, BSPP, NPT
Materials: Gunmetal body, Mild Steel Covers
Maximum System Pressure: 16 Barg
Temperature: 170 degC
Notes: Fully PED compliant. Fully UK manufactured.
