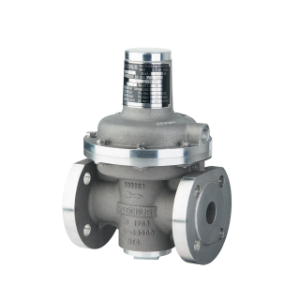

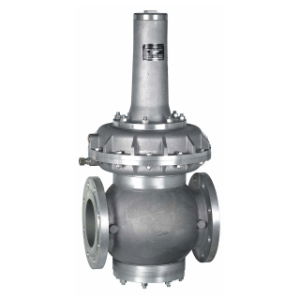

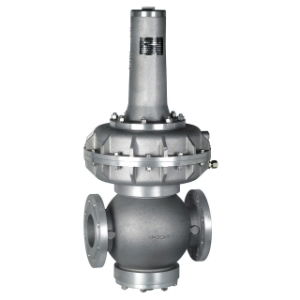

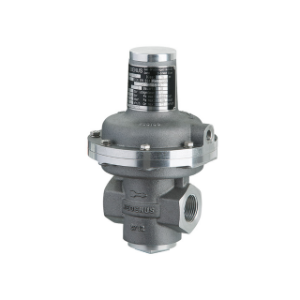

Gas pressure regulators are devices used to automatically reduce and maintain gas pressure from a high-pressure source to a stable, usable level for appliances, processes, or equipment. They’re essential for safety, performance, and efficiency in systems using natural gas, propane, nitrogen, oxygen, hydrogen, or industrial gases.
How a Gas Pressure Regulator Works:
- High-pressure gas enters the regulator inlet.
- A spring-loaded diaphragm mechanism balances downstream pressure against a preset value.
- If downstream pressure drops, the valve opens more; if it rises, the valve closes slightly.
- The regulator continuously adjusts to maintain steady output pressure, regardless of input fluctuations.
Main Components:
- Inlet & outlet ports
- Valve seat & orifice
- Diaphragm (flexible membrane)
- Spring (sets pressure level)
- Vent (for atmospheric reference or exhaust)
- Adjustment screw or knob (to change setpoint)
Types of Gas Pressure Regulators:
| Type | Use Case |
|---|
| Single-stage | Simple applications with relatively stable inlet pressure |
| Two-stage | More accurate, handles wide inlet pressure variation |
| Line regulators | For point-of-use pressure control |
| Cylinder regulators | Directly on gas bottles or tanks |
| High-flow regulators | Industrial equipment, furnaces |
| Low-pressure regulators | Residential appliances (e.g., BBQ, stoves) |
| Back pressure regulators | Maintain upstream pressure by bleeding excess |
| Dome-loaded regulators | Precise control for high-purity or inert gases |
Selection Considerations:
- Gas type and compatibility (materials matter)
- Inlet and outlet pressure range
- Flow rate (scfh, Nm³/h, etc.)
- Accuracy and sensitivity needed
- Operating temperature
- Connection type (threaded, flanged, etc.)
- Certifications (e.g., CSA, UL, ISO)
Applications:
- Residential: Gas stoves, heaters, barbecues
- Industrial: Welding gases, furnaces, chemical processing
- Medical: Oxygen or anesthesia delivery systems
- Laboratories: High-purity gases
- Power generation: Fuel gas to turbines or engines
