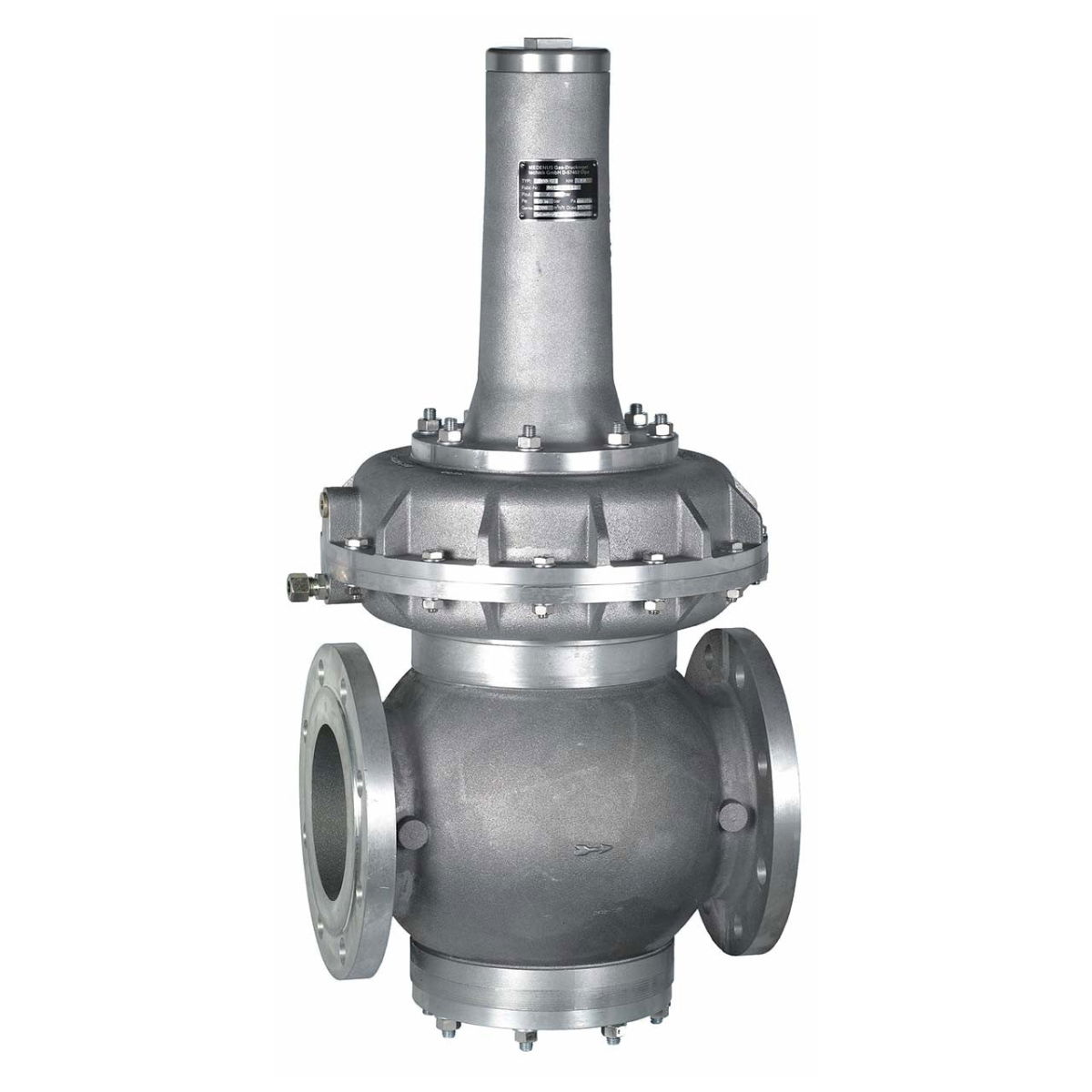

The Medenus R100 Gas Pressure Regulator ensures a constant outlet pressure regardless of the primary inlet pressure. When the gas usage varies it ensures a quick pressure regulation when the flow rate changes abruptly. The Medenus R100 Gas Pressure Regulator is also available as a rotary regulator R 100 U and as a vacuum regulator R100UD (especially for bio-gas plants and gas engines). The Medenus R100 Gas Pressure Regulator is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The Medenus R100 is available with flange connections DN50 to DN200 and working pressure up to 8 bar. All gas pressure regulators are certified by DVGW and CE.
Specification
Sizes: 2" (DN50) to 8" (DN200)
Connections: Flanged PN or ANSI
Materials: Housing: Silumin Casting, Internal Parts: Stainless Steel
Disk: NBR (vulcanised)
Joints & Seals: Diaphragms: NBR
Medium: Gas
Inlet Pressure (Max): 8 Barg
Outlet Pressure Range: 8 to 1200 mBarg
Temperature: -20 to +60 degC
Notes: Can be fitted in any orientation, gas-tight zero position
